Introduction

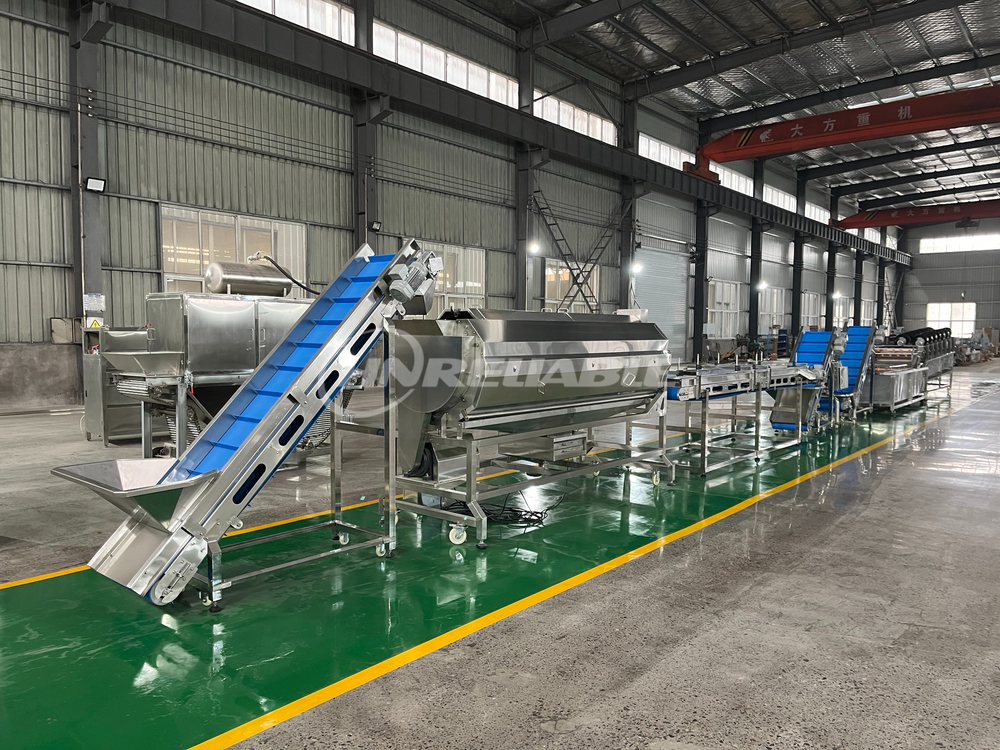

Automatic potato chips production line can produce packaged potato chips for sale with minimum labor and maximum efficiency through industrialized assembly line.
Capacity: 100kg/h,150kg/h,200kg/h,260kg/h,300kg/h,400kg/h and 500kg/h

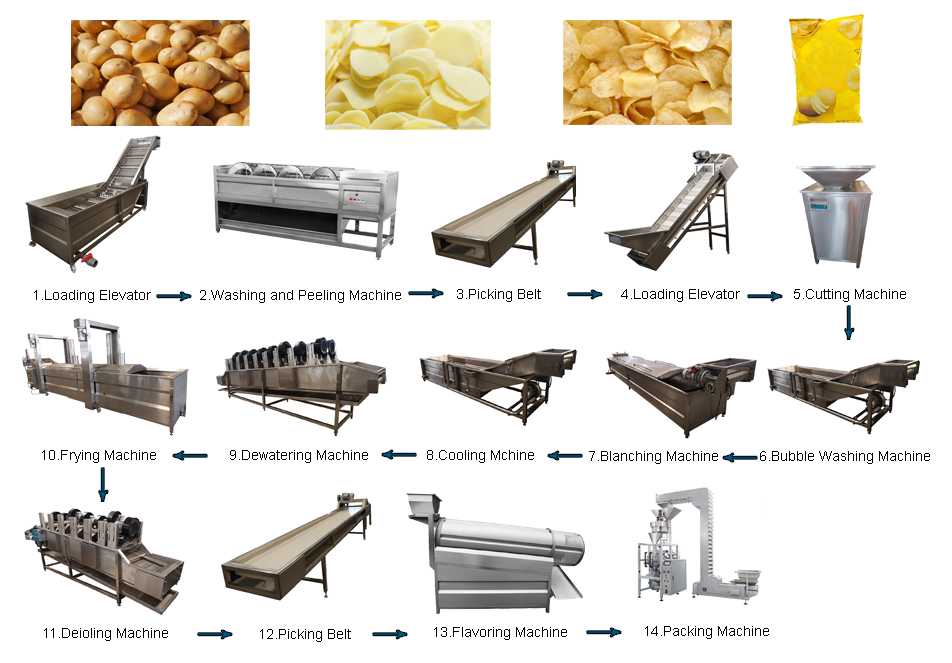

Processing flow
Potato Washing and lifting machine -Potato spiral peeling machine -Potato picking conveyor -Elevator -Potato slicer -Potato chip washing machine-Potato chip blanching machine -Potato chip cooling machine -Potato chip air drying machine -Potato chip frying machine -Potato chip cooling and degreasing machine -Conveyor -Potato chip seasoning machine -Packing machine
Main products
Potato Washing and lifting machine
The potato washing and lifting machine first clean the impurities on the surface of potatoes through the bubble-generating device, then conveys them to the peeling machine through the conveyor belt for processing.

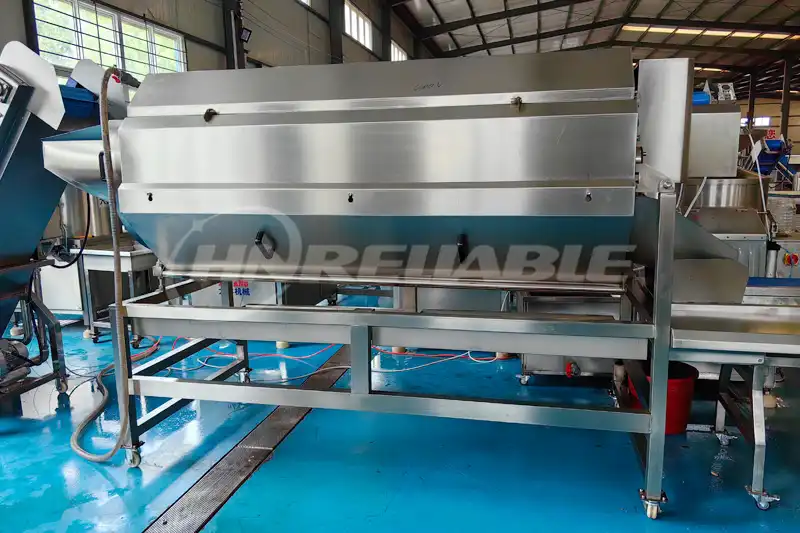

Potato spiral peeling machine
The spiral peeling machine peels the potatoes through the internal hair rollers while the spiral device slowly pushes the potatoes to the discharge port for subsequent processing.
The potato spiral peeling machine is suitable for use in potato processing lines.
Potato picking conveyor
One or more picking conveyors are generally required in potato processing lines.
These machines are convenient for picking out irregularly shaped materials quickly by hand during the material transfer process to ensure the quality of the finished product.
Potato Slicing machine
An automatic potato slicer is used in the potato processing line to cut potatoes into uniform potato slices quickly and in bulk, with adjustable thickness, smooth surface, and bright color.
Potato chip washing machine
A potato chip washing machine generates bubbles through a bubble-generating device.
The impact produced by the bubble break can effectively clean off the starch and other impurities on the surface of potato chips.

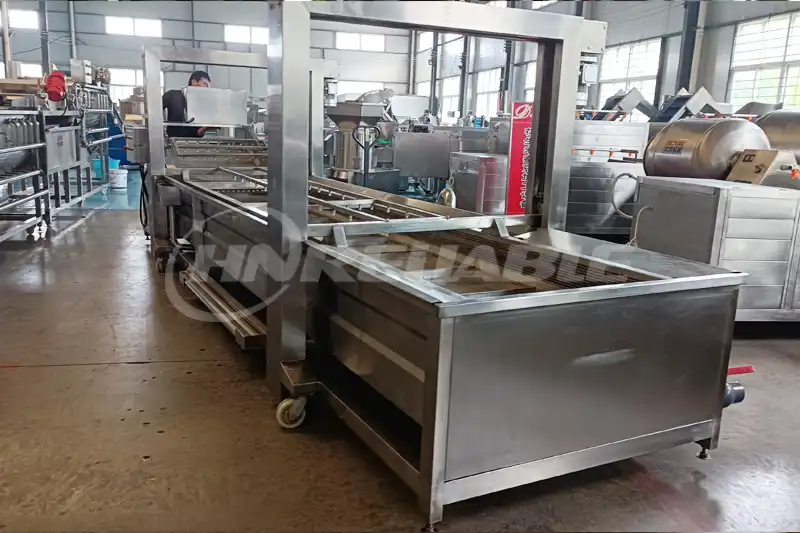

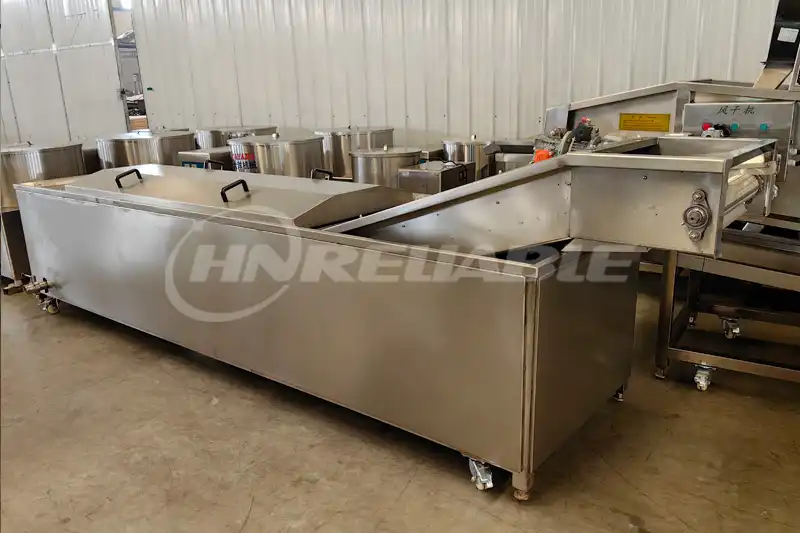

Potato chip blanching machine
The Potato blanching machine rinses and kills the cut potato chips, which can keep the color and freshness of potato chips and facilitate preservation.
Potato chip cooling machine
After potato chips are blanched at high temperatures, they must be cooled by a potato chip cooler to facilitate subsequent frying processing.

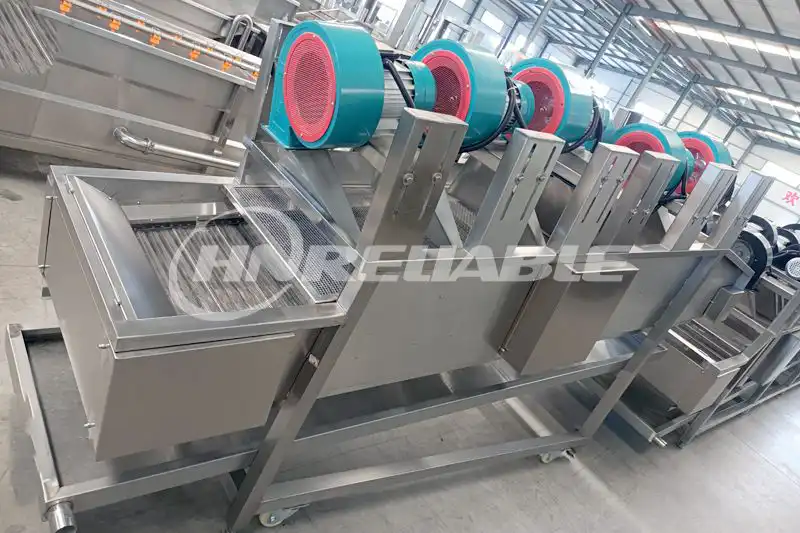

Potato chip air-drying machine
The mesh belt air-cooled potato chips air dryer conveys the cooled potato chips through the mesh belt.
The air drying machine is equipped with a certain number of fans to blow the moisture on the surface of the potato chips.
We can adjust the number of these fans according to the production scale.
The mesh belt can turn the material over several times during the conveying process to ensure that the surface of the potato chips does not contain moisture.
Potato chip frying machine
The continuous potato chips fryer is equipped with a stirring device. During the frying process, the stirrer stirs the material, and the frying is more thorough.
Continuous potato chips fryer is often used in potato chip processing lines.
It can produce continuously, with high output and high production efficiency.
Potato chip cooling and de-oiling machine
After frying, the surface of the potato chips has undrained oil, and the temperature is also high.
The function of the potato chip cooling and degreasing machine is to dry the oil on the surface of potato chips quickly through the fan during the conveying process, and the conveyor belt will automatically turn over to ensure that the chips are cleanly degreased and not affect the taste.

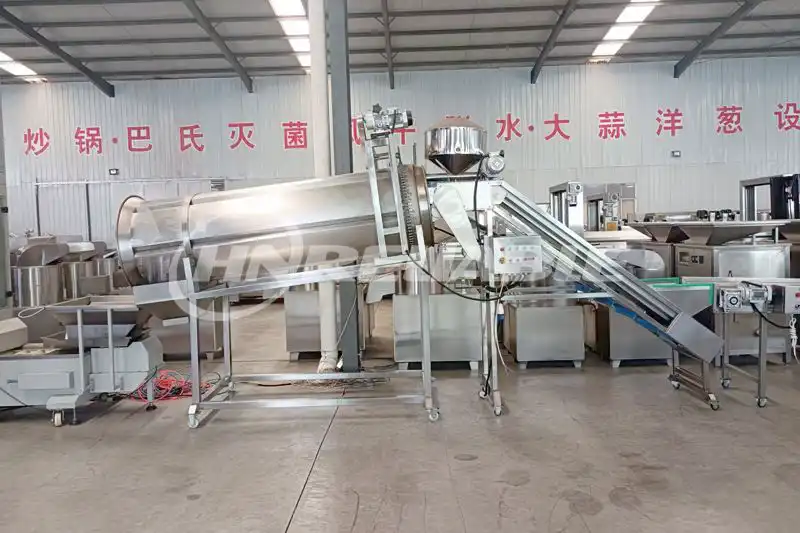

Potato chip seasoning machine
The potato chips processing line needs to use the drum-type seasoning machine to realize continuous production, spread the material evenly, and ensure the output.
Packing machine
The potato chips processing line needs to use an automatic packaging machine, which needs to be customized according to the weight of the package, package size specifications, and other parameters.
