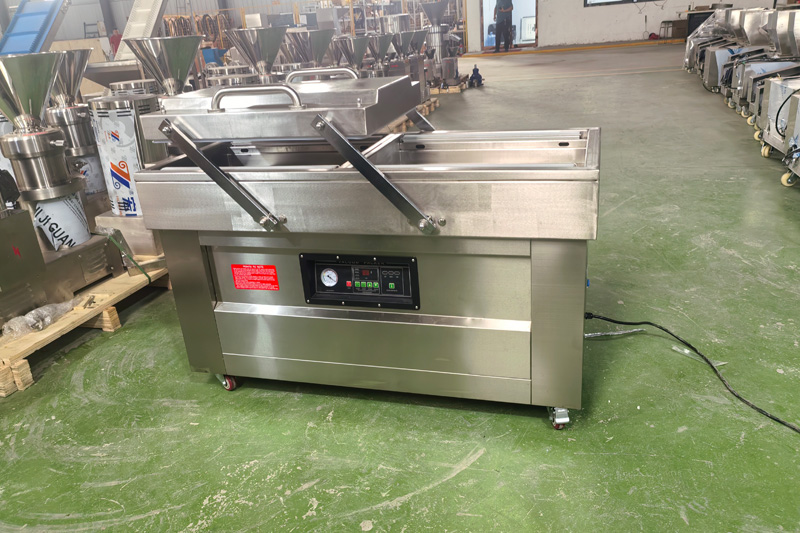

The double-chamber vacuum packaging machine features two independent vacuum chambers that alternate operation — while one chamber is vacuuming and sealing, the operator can load or unload products in the other, eliminating idle time and maximizing output.
Key Features
High-Efficiency Dual-Chamber Design: Two chambers alternate to minimize waiting time, with a typical cycle time of 20–40 seconds.
Durable & Hygienic Construction: Made of stainless steel with a flat chamber bottom for easy cleaning and food-grade compliance.
Flexible Control System: Equipped with a microcomputer or sensor control panel, capable of storing multiple programs for precise vacuum, sealing, and cooling time settings.
Reliable Sealing: High-pressure sealing system with a standard seal width of 10mm for strong, consistent seals.
Optional Gas Flushing: Supports inert gas (e.g., nitrogen) connection for Modified Atmosphere Packaging (MAP) to further extend shelf life.
Technical Specifications
Model | Power /Voltage | Size | Weight | Capacity |
DZ400 (Single-room) | 1KW/380V | 540*520*900mm | 80KG | 60－160 Times/H |
DZ400 | 1KW/380V | 1050*650*855mm | 180KG | 60－160 Times/H |
DZ500 | 2KW/380V | 1220*680*900mm | 230KG | 90－360 Times/H |
DZ600 | 2.2KW/380V | 1425*720*950mm | 320KG | 90－360 Times/H |
DZ700 | 4KW/380V | 1650*810*900mm | 380KG | 90－360 Times/H |
DZ800 | 4KW/380V | 1830*910*1100mm | 500KG | 90－360 Times/H |
DZ900 | 4KW/380V | 1930*720*1050mm | 600KG | 90－360 Times/H |
If you need a detailed specification sheet for a specific model (e.g., 600mm seal length or gas-flushing version), feel free to let me know.
